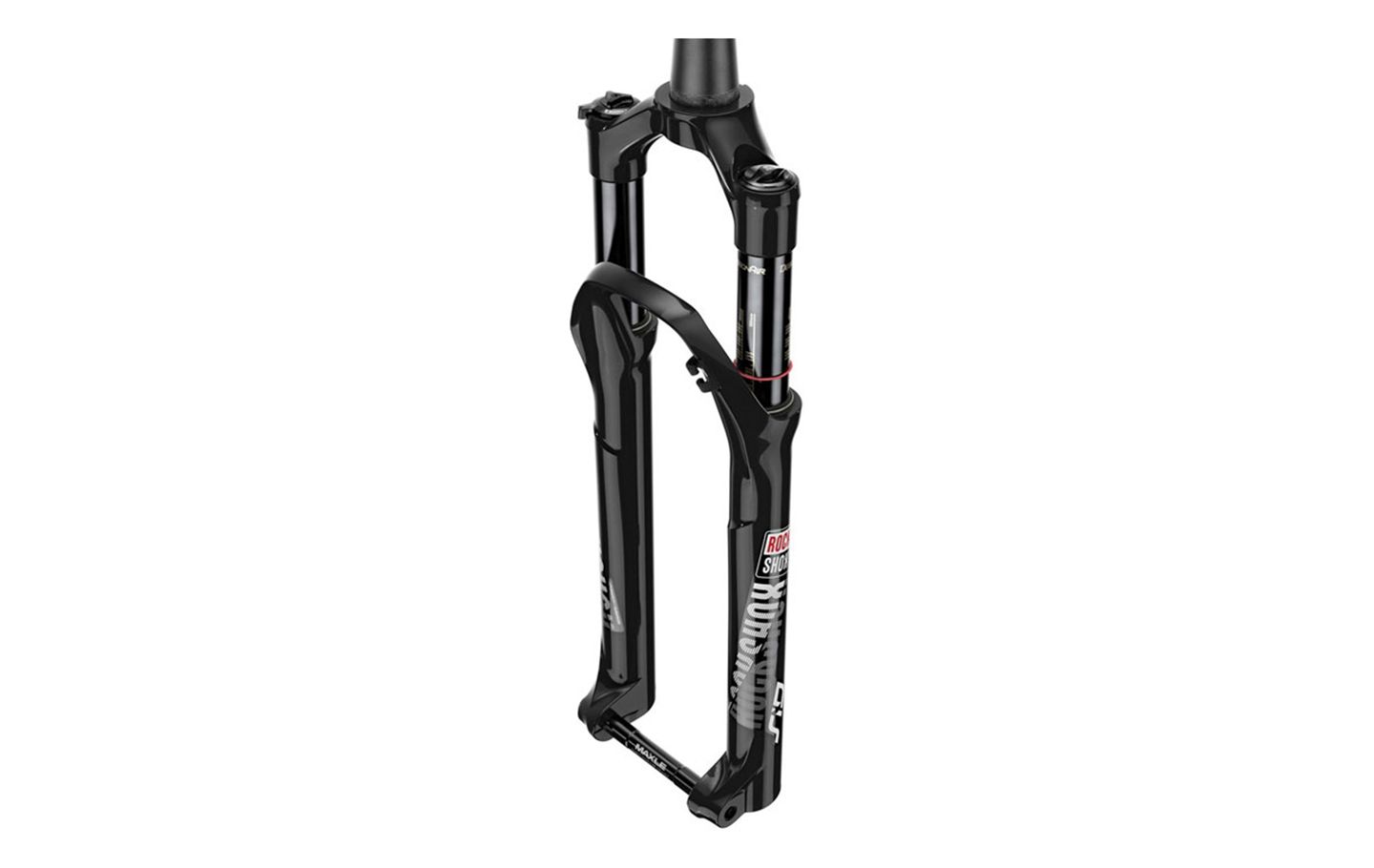

Sid rl r 29" debon air 100mm boost remot

Application: Cross Country
Wheel Size: 29"
Type: air
Travel: 100 mm , 120 mm
Steerer Tube: 1 1/8" - 1.5" tapered
Axle Type: thru-axle (15 x 110 mm)
Brake Mount: disc PM6 (direct mount 160 mm)

Technical Information:
Offset: 51 mm
Steerer Tube Length: 245 mm
Steerer Tube Diameter (Stem): 28.6 mm
Steerer Tube Diameter (Crown Race): 40 mm
Axle to Crown (mm): 506 mm (100 mm), 531 mm (120 mm)
Over Locknut Dimension: 110 mm
Stanchion Tube Diameter (mm): 32 mm
Steerer Tube Material: aluminium
Crown Race Material: aluminium
Stanchion Tube Material: aluminium
Lower Tube Material: magnesium

Adjustment Options:
Compression: low-speed (2 Position: open-lock)
Rebound: yes
Suspension Stiffness: air pressure adjust
Remote: yes (OneLoc)
Travel Adjustment: no

Approved For:
Tyre Width (max.): 29 x 3.2"
Rotor Size (max.): 220 mm

Features:
- DebonAir technology
- Charger 2 RL damper
- Boost version
- OneLoc remote

Model Index:
100 mm / 1.5 tapered / 15 x 110 mm:
- Travel: 100 mm
- Steerer Tube: 1 1/8" - 1.5" tapered
- Brake Mount: disc PM6 (direct mount 160 mm)
- Axle Type: thru-axle (15 x 110 mm)
- Factory Number: 00.4019.914.003
